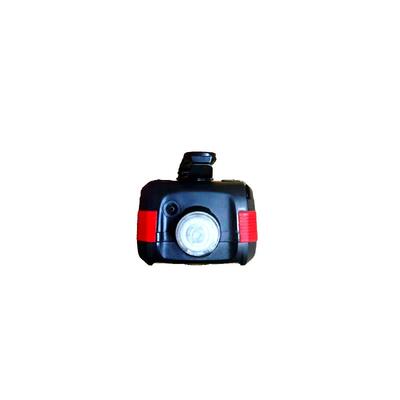

Zetron MS500 Multi Gas Detector – Real-time Monitoring for CO, H2S, LEL, O2 with High Precision and Fast Response

  • Zetron MS500 Multi Gas Detector – Real-time Monitoring for CO, H2S, LEL, O2 with High Precision and Fast Response
  • Zetron MS500 Multi Gas Detector – Real-time Monitoring for CO, H2S, LEL, O2 with High Precision and Fast Response
  • Zetron MS500 Multi Gas Detector – Real-time Monitoring for CO, H2S, LEL, O2 with High Precision and Fast Response
  • Zetron MS500 Multi Gas Detector – Real-time Monitoring for CO, H2S, LEL, O2 with High Precision and Fast Response
  • Zetron MS500 Multi Gas Detector – Real-time Monitoring for CO, H2S, LEL, O2 with High Precision and Fast Response
Lieu d'origine Chine
Nom de marque Zetron
Certification CE
Numéro de modèle MS500
Quantité de commande min 1 ENSEMBLE
Détails d'emballage Carton de papier
Conditions de paiement L/C, D/P, D/A, T/T

Contactez-moi pour des aperçus gratuits et des bons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Nom du produit Analyseur de gaz portatif Numéro de modèle MS500
Unité de gaz Page par minute, mg/m3, % volume, LEL%, PPHM, ppb, mg/l. Taper Détecteur de gaz multi portatif, infrarouge
Garantie 12 mois Couleur Noir
Niveau de protection IP66 Un accompagnement personnalisé OEM, ODM, OBM
Poids 350g TAILLE 180*78*33mm
Laisser un message
Description de produit

MS500 Portable Gas Detector



OVERVIEW


MS500 is designed for critical industrial environments, offering a next-generation solution for real-time gas detection. It is equipped with advanced imported sensors, capable of simultaneously monitoring up to five gases, including flammable, toxic, and oxygen gases. This makes it ideal for rapid detection in demanding conditions, ensuring the safety of personnel and production processes.



PARAMETERS





Measuring gas
CO/H2S/LEL/O2
Measuring range
0-1000,2000,5000ppm
Other ranges can be customized
Resolution
0.1 ppm
1 ppm
Other ranges can be customized
Sensor type
Other Sensor: Infrared, Electrochemical, catalytic combustion, thermal conductivity, PID photoionization, and so on.
Other Sensor can be customized
Measuring type
Built-in pump-suction type
Response time
T90<20s
Display
2.5-inch high-definition color screen
Alarm method
sound & light + vibration alarm;turning off the alarm
Battery
DC3.7V, 3000mA high capacity rechargeable polymer battery
Data storage
Standard capacity is 100,000 entries.
Working temperature
-40 ℃ ~ + 70 ℃
Working humidity
0 ~ 95% RH
Housing
Rubber enclosure
Standard accessories
Manual, qualification certificate, warranty card, USB charger (including the data cable), high-grade aluminum instrument case,
belt clip, humidity dust filter
Dimension (L×W×H)
180×78×33mm
Weight
350g
Ex grade
Ex ia IIC T4 Ga Intrinsically safe type
Ingress protection
IP66



PARAMETERS

Massive Storage & Multi-Port Integration:
Standard configuration supports storage of 100,000 data entries, with options for real-time and fixed-time storage. USB and RS232 interfaces make data export easy for analysis and archiving.



Multi-Mode Stereoscopic Alarm:
Includes sound & light, vibration, visual, concentration, under-voltage, and failure alarms, with customizable settings like low and high alarms, interval alarms, and weighted average alarms. This provides multi-directional safety indications.



Seven-Fold Protection for Harsh Environments:
With IP65 water and dust resistance, explosion-proof features, shock-proof, anti-static, and electromagnetic immunity, the MS500 ensures reliable operation in the most challenging industrial settings.



Pump-Suction High-Efficiency Sampling:
The pump-suction sampling system, equipped with a built-in water vapor/dust filter, ensures accuracy. Additionally, Bluetooth connectivity allows for wireless printing of reports on-site.



Zetron MS500 Multi Gas Detector – Real-time Monitoring for CO, H2S, LEL, O2 with High Precision and Fast Response 0





APPLICATION



MS500 Intelligent Pump-Suction Multi-Gas Analyzer is designed for a wide range of industrial applications where safety and rapid detection are critical. It excels in energy, chemical, and manufacturing sectors for leak detection and hazardous gas monitoring during pipeline inspections, steel smelting, and non-ferrous metal processing. The device is also indispensable in medical, environmental, and confined space operations, offering precise gas measurements in pharmaceuticals, sewage treatment, and emergency response scenarios. With its robust construction and real-time, multi-gas detection capabilities, the MS500 ensures personnel safety and operational efficiency across various high-risk environments.



Zetron MS500 Multi Gas Detector – Real-time Monitoring for CO, H2S, LEL, O2 with High Precision and Fast Response 1
