Zetron MS104K Portable Four-in-One Gas Detector with Bilingual Support, Trend Graphs, and Long Battery Life, High Accuracy for Municipal Engineering and Gas Industry

Place of Origin China
Nom de marque Zetron
Certification CE
Model Number MS104K
Minimum Order Quantity 1 set
Prix USD 100/set
Packaging Details 140*75*52mm
Delivery Time 7-10 work days
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 900 SET / week

Contactez-moi pour des aperçus gratuits et des bons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Product Name 4 In 1 Gas Detector Type Portable
Gas Detected Multiple gases Ip Rating IP-66
Detection Range Depends on the sensor configuration Dimensions Depends on the model
Detecting Gas Combustible Gas/H2S/CO/O2/H2S/H2 Ambient Temperature -20℃ ~ + 60℃
Accuracy ±3% (at calibration point) Function PID TVOC air detector
Precision ≤±3%FS
Laisser un message
Description de produit

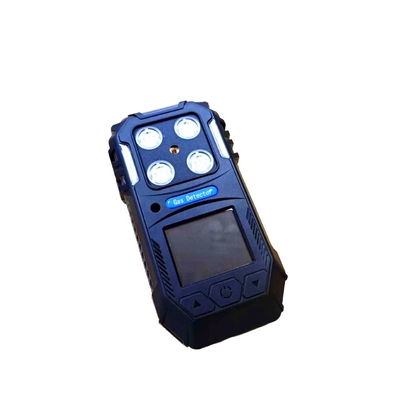

MS104K Portable 4-1 Gas Detector



OVERVIEW



The MS104K is a high-performance portable gas detector designed for multi-gas monitoring, capable of detecting combustible gases, oxygen, and toxic gases with customizable sensors. Using advanced electrochemical and catalytic combustion technologies (with an optional NDIR infrared sensor), it provides quick, accurate readings. The device features a TFT color LCD for easy operation, with bilingual support (English and Chinese), and includes triple alarm modes (audible, visual, and vibration) for immediate alerts. Constructed from durable PC+TPU anti-static materials and fitted with a stainless steel back clip, it is built to withstand tough industrial environments. With an IP65 rating and Ex ia IIC T4 Ga explosion-proof certification, it ensures safe use in hazardous conditions. The MS104K also stores up to 1000 alarm records, displays trend graphs, and offers a Type-C charging port with a battery life of over 16 hours. Its ergonomic biomimetic owl design combines comfort and aesthetics, making it an ideal choice for industries like petroleum, chemicals, and metallurgy, providing reliable gas safety monitoring and protection.



Zetron MS104K Portable Four-in-One Gas Detector with Bilingual Support, Trend Graphs, and Long Battery Life, High Accuracy for Municipal Engineering and Gas Industry 0



Zetron MS104K Portable Four-in-One Gas Detector with Bilingual Support, Trend Graphs, and Long Battery Life, High Accuracy for Municipal Engineering and Gas Industry 1





FEATURES



  • Gas Detection: Detects combustible gases, oxygen, and toxic gases (such as CO, H2S, SO2, NH3, NO2, PH3, CL2, etc.) with customizable sensors.

  • Simultaneous Detection: Can detect up to four gases simultaneously.

  • Alarm History: Stores up to 1000 alarm records for easy review.

  • Dual-Menu Interface: Supports both icon and text-based menu options.

  • Factory Reset Function: Restores to factory settings when needed.

  • Trend Graph Display: Shows the trend of gas concentrations over time.

  • Operational Indicators: Equipped with work status lights.

  • USB Type-C Charging: Convenient for fast and efficient recharging.



SPECIFICATION



Gas
NH3, NO2, PH3, CL2, EX
Detection Principle Electrochemical, catalytic combustion (optional NDIR infrared sensor)
Resolution 0.01ppm or 0.001ppm (0 ~ 10 ppm);
0.01ppm (0 ~ 100 ppm),
0.1ppm (0 ~ 1000 ppm),
1ppm (0 ~ 10000 ppm or more)
Measurement Units %VOL, %LEL, ppm, mg/m3
Sensor service life Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years; catalytic combustion: 3 years.
Accuracy ≤±3% F.S (higher precision levels can be customized)
Response time T90≤30 seconds Recovery time ≤30 seconds
Operating Mode Diffusion
Power supply
Built-in high-performance lithium battery, nominal voltage: 3.7VDC;
Alarm mode It is possible to set as sound & light alarm, vibration alarm.
Working Time >16 hours (at room temperature without alarms); >20 hours for NDIR version
Power Consumption ≤0.7W
Operating Pressure 86kPa to 106kPa
Protection level IP65
Explosion-proof mark Exia II CT4 Ga
Exterior dimensions 126×66×47mm (L×W×H)
Weight Approx. 189g



APPLICATION



MS104K Portable Four-in-One Gas Detector is ideal for precise monitoring of combustible gases, oxygen, and toxic gases in various industrial and safety sectors. Its versatility and high accuracy make it perfect for industries such as petrochemical, metallurgy, firefighting, gas distribution, environmental protection, pharmaceuticals, power generation, mining, and municipal engineering. The device helps ensure safety by detecting gas leaks, protecting workers' health, and preventing accidents in hazardous environments. With its durability, ease of use, and timely alarms, the MS104K provides reliable gas safety monitoring, effectively preventing accidents and ensuring the safety of life and property.



Zetron MS104K Portable Four-in-One Gas Detector with Bilingual Support, Trend Graphs, and Long Battery Life, High Accuracy for Municipal Engineering and Gas Industry 2
